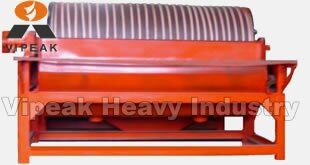

Magnetic Separator

Magnetic Separator

Magnetic Separator is the machine that can separate the minerals dependent on the different magnetic factor, magnetic force and mechanical force.
Magnetic Separators are devices that are primarily used to eliminate tramp iron from ores and for removing contaminating materials that can damage equipment. The range of Magnetic Separators consists of Suspension Magnets, Plate Magnets, Hump Magnets, Magnetic Drum Separators, Magnetic Pulleys and Magnetic Grids. In concentration processes, the Magnetic Separator is commonly used to sort various types of metals. Similarly, in case of weak magnetic minerals such as hematite, limonite and garnet, they can be separated from the non- magnetic substances, by the use of high-intensity separators. Jupiter Magnetics is instrumental in bringing to you a comprehensive range of quality magnetic separators that is thoroughly tested at various stages of production. Our assortment of magnetic separators is robust, dimensionally precise, capable of surviving temperature variations, impervious to corrosion, and much more. These separators are mostly used in conveyors, coal handling plants, thermal power station, cement and sugar industry, fertilizers, chemical, plastic, & recycling industry. Apart from this, the Magnetic Separator offered by us should be maintained properly, by periodically oiling its moving parts. This will assure its efficiency & high performance. Further, the Magnetic Separators offered by us are competitively priced.
Technical parameter of Magnetic Separator:
Spec. motor(kw) Capacity(t/h) Weight(t)
CTB600×600 1.1 5-10 0.85
CTB600×900 1.5 8-15 0.9
CTB600×1200 2.2 10-20 1.2
CTB600×1800 2.2 15-30 1.4
CTB750×1200 3 12-25 1.5
CTB750×1800 3 30-45 2.1
CTB900×1800 4 35-60 3.0
CTB10500×1800 4.5 40-75 4.2
CTB1050×2100 5.5 50-80 4.9
